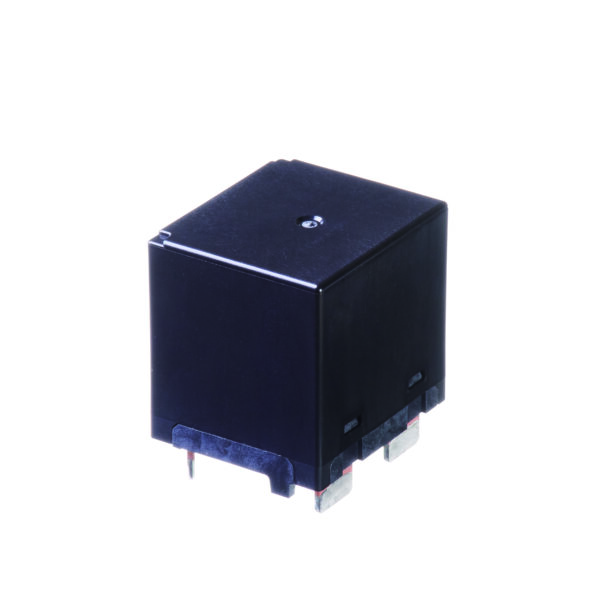

Features of the HE Relay PV Type
- High Capacity Contact Rating: 35A, 48A, or 90A types
- Compact Case Size: 35A/48A – 33 x 38 x 36.3H mm, 90A – 33 x 38 x 38.8H mm
- PCB Mounted
- Low Coil Holding Power
- Large Contact Gap: 35A/48A – 2.5 mm, 90A – 3.0 mm
- High Surge Breakdown Voltage: 2.5kW
- RoHS/REACH Compliant
Benefits of the HE Relay PV Type
- High-Capacity Control
- Takes Up Less Board Space
- Easier Assembly For High-Volume Projects
- Low Power Operation
- Meets VDE0126 and EN61810-1
- Environmentally Friendly
